Tool Cabinet Heavy-Duty Tool Cabinet
Tool Cabinet - H1200
Heavy Duty｜EA/EB/ED
Standard drawer：100kg load capacity
T drawer：200kg load capacity
Top chest is optional.
T drawer：200kg load capacity
Top chest is optional.
Features
-

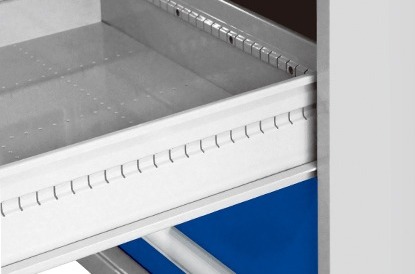

Standard drawer
90% extention with 100kg load capacity -
T drawer
100% extention with 200kg load capacity -
With leveler screws
-
With lock
-
Full length aluminum handles and labels
-
Drawer latch
-
Top chest
is optional -

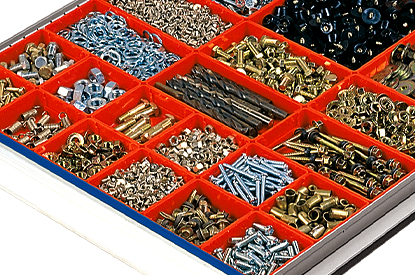

Division boxes
1st drawer with division boxes -
Adjustable dividers
The rest with dividers
| Model No. | EA | EB | ED |
|---|---|---|---|
| Width | 566 mm | 718 mm | 718 mm |
| Depth | 607 mm | 607 mm | 759 mm |
Step.1
Cabinet Size
Step.2
Cabinet Height
Step.3
Drawers
| Drawer Height A | 50 | 75 | 100 | 125 | 150 | ||
|---|---|---|---|---|---|---|---|
| Side Panel Height B | 33 | 52 | 77 | 77 | 127 | ||
| Usable Height C | 35 | 57 | 82 | 107 | 132 | ||
| Drawer Height A | 200 | 250 | 300 | 350 | 400 | ||
|---|---|---|---|---|---|---|---|
| Side Panel Height B | 127 | 127 | 127 | 127 | 127 | ||
| Usable Height C | 182 | 232 | 282 | 332 | 382 | ||
Unit of measurement：mm
Step.4
Silde System
Standard drawer : 90% extensionT drawer : 100% extension
Made in Taiwan
Standard drawer：100kg load capacity
T drawer：200kg load capacity
1st drawer with division boxes,
the rest with dividers.
Standard drawer：100kg load capacity
T drawer：200kg load capacity
1st drawer with division boxes,
the rest with dividers.
| EA Heavy Duty Tool Cabinet (T= T drawer) |
Dimensions (WxDxH) | Material | |||||
|---|---|---|---|---|---|---|---|
| 566x607x1200 | Steel | ||||||
Unit of measurement：mm
| EB Heavy Duty Tool Cabinet (T= T drawer) |
Dimensions (WxDxH) | Material | |||||
|---|---|---|---|---|---|---|---|
| 718x607x1200 | Steel | ||||||
Unit of measurement：mm
| ED Heavy Duty Tool Cabinet (T= T drawer) |
Dimensions (WxDxH) | Material | |||||
|---|---|---|---|---|---|---|---|
| 718x759x1200 | Steel | ||||||
Unit of measurement：mm
1st drawer height (50mm-100mm) :
with division boxes
1st drawer height 150mm：with 3x3 dividers
1st drawer height 200mm：with 2x2 dividers
-
EA drawer
-
EB drawer
-
ED drawer
-
1st drawer height 50 mm
ABS division boxes
TK-8711 W74xD74xH26 mm TK-8712 W148xD74xH26 mm TK-8713 W148xD148xH26 mm -
1st drawer height 75 mm
ABS division boxes
TK-8721 W74xD74xH45 mm TK-8722 W148xD74xH45 mm TK-8723 W148xD148xH45 mm -
1st drawer height 100 mm
ABS division boxes
TK-8731 W74xD74xH70 mm TK-8732 W148xD74xH70 mm TK-8733 W148xD148xH70 mm
Drawer height 50mm-150mm :
with 3x3 dividers
-
EA drawer
-
EB drawer
-
ED drawer
Drawer height over than 200mm :
with 2x2 dividers
with 2x2 dividers
-
EA drawer
-
EB drawer
-
ED drawer
